Bilan HVAC dla Androida / Windows
Application designed to assist the Engineer on site and in the office.All-In-One - ventilation, heating, potable water. COMMERCIAL version.
NOTE - The application can run on older configurations to several seconds !!! Please calmly wait!
Differences between the SIMPLE and the standard version at the bottom of the page.
We work hard on a translation this app into French and German. It will be ca February 2016.
Illustrations show tabs additional to Simple!
Basic features:
Tab VENTILATION

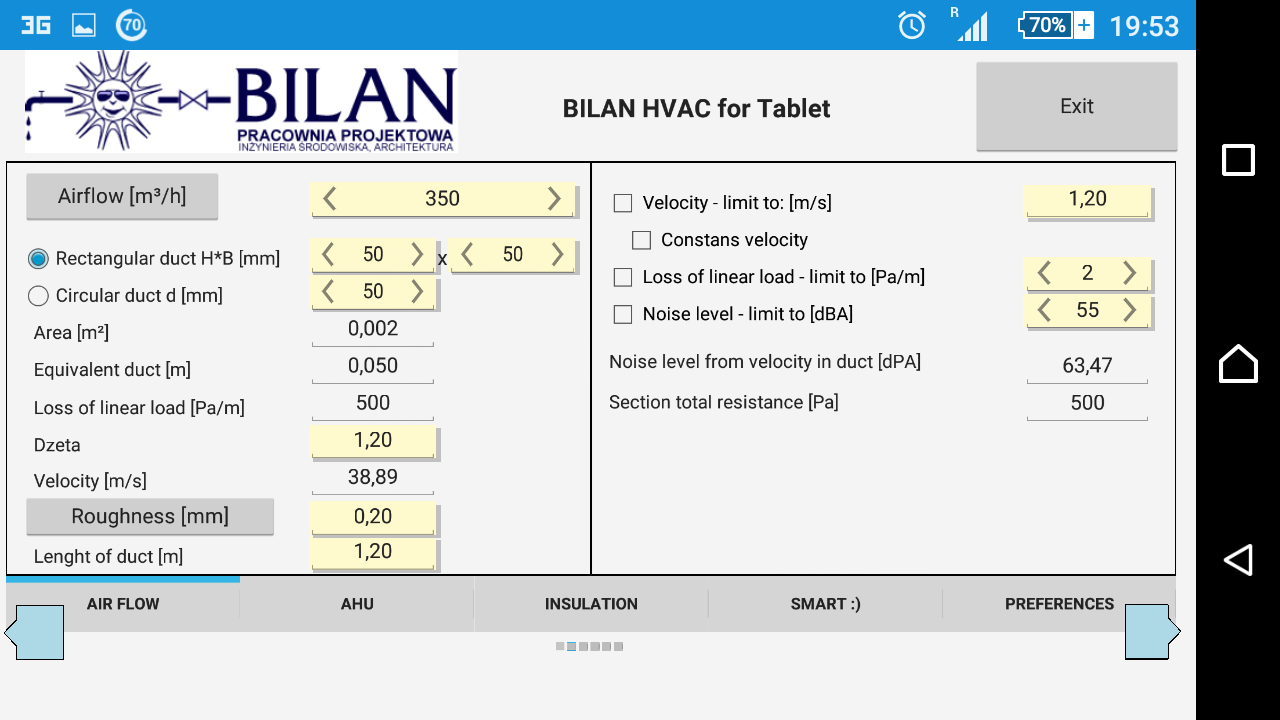

Tab STREAMS
For a given dimension of the flow duct selection depending on the speed or noise
The term for this duct:
- Air flow resistance,
- Speed,
- Noise,
- Selection of the size of the duct so as not to exceed the speed condition - only Standard,
- Selection of the size of the duct so as not to exceed the noise condition - only Standard,

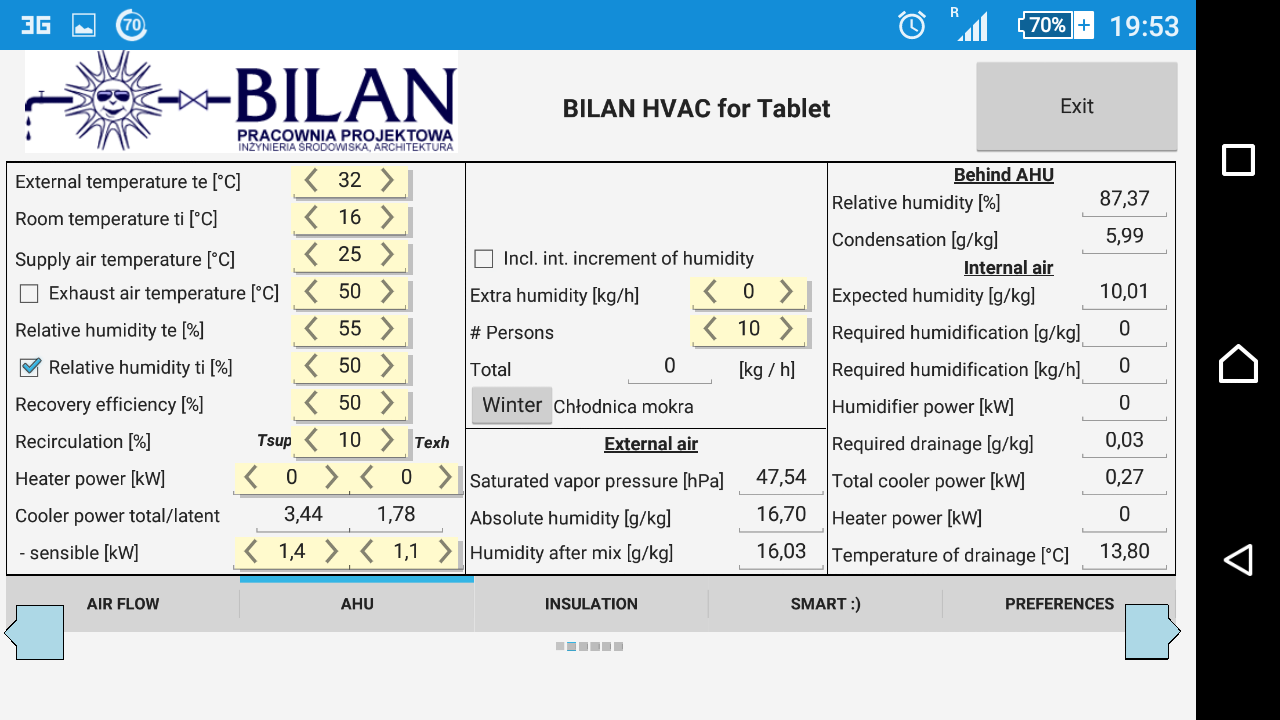

Tab CHANGE OF CONTROL - only the PRO
The full calculation of the change of ventilation, endearing:
- The power of the heater,
- The power of the radiator overt,
- Latent cooling power,
- Moisture condensation,
- The required power-heater.

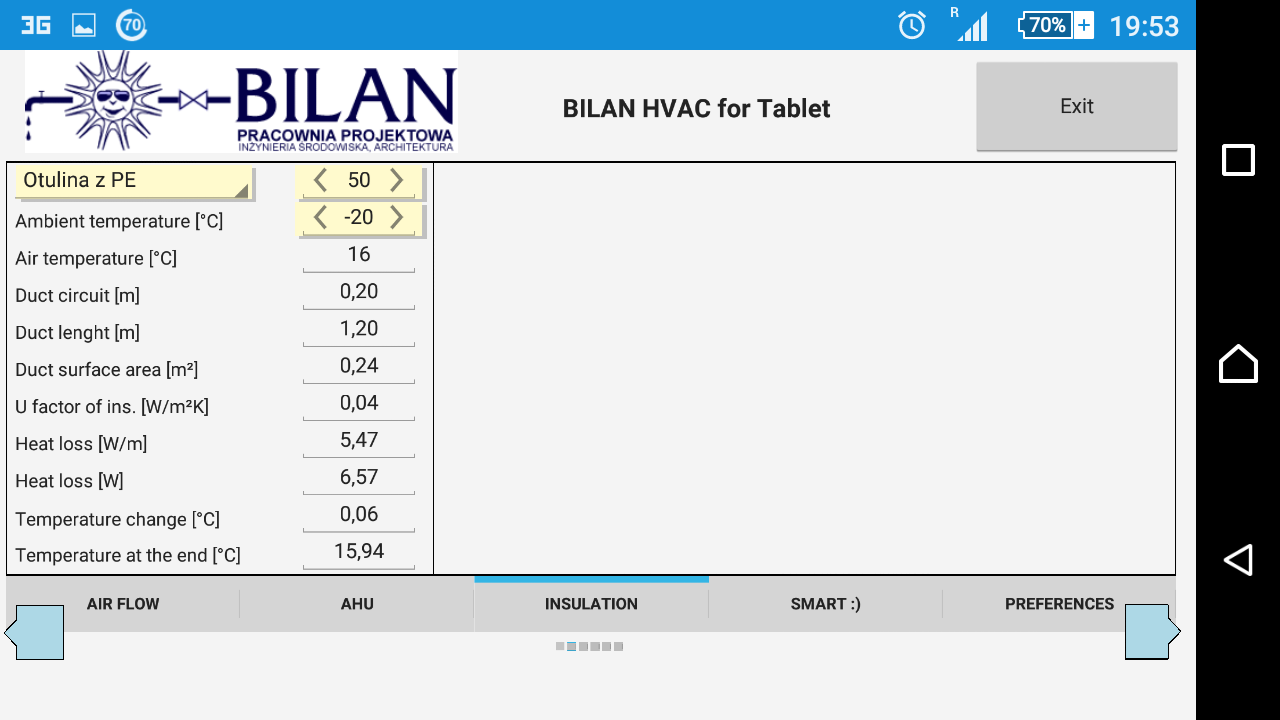

Tab INSULATION - only the PRO
Determination of heat loss and temperature drop in the duct
Tab SMART
Hydraulics calculations carried out in a simplified way, giving the minimum amount of data, and at the same result obtained in the form of a rapid use of the site. In the future there will appear other conversion.

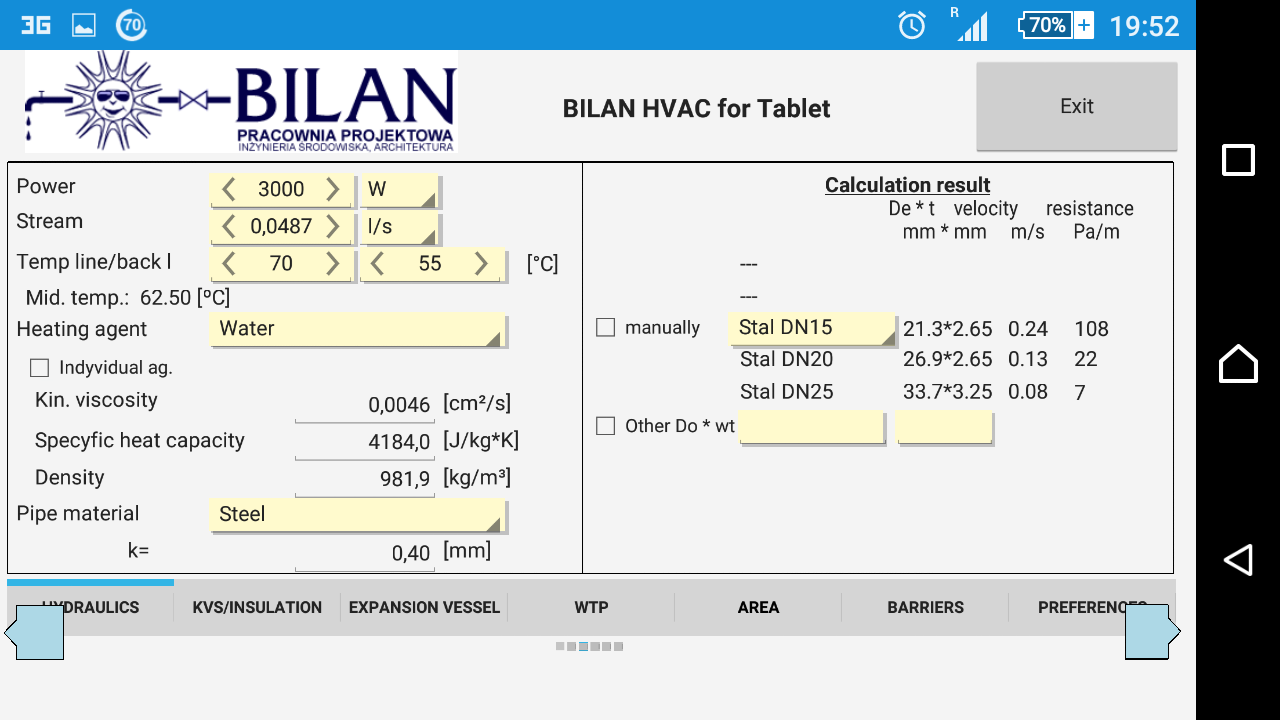

HEATING
* Hydraulics:
- Conversion under a stream of liquid to various media.
- Finishing panels pipe diameters based on the criterion of speed or pressure.

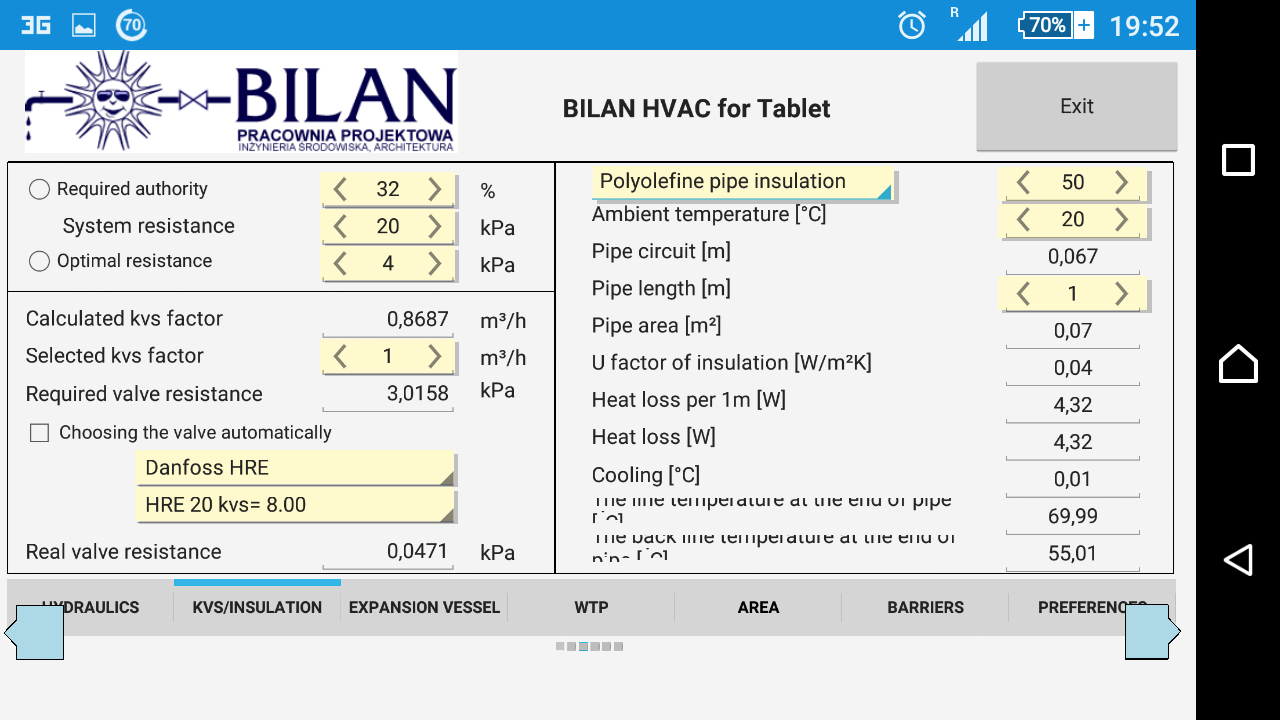

* Finishing panels regulating valve on the basis of the authority or the required resistance.
* Calculations of heat loss through the insulation - only Standard.
* Sizing WTP, and the translation of hardness.

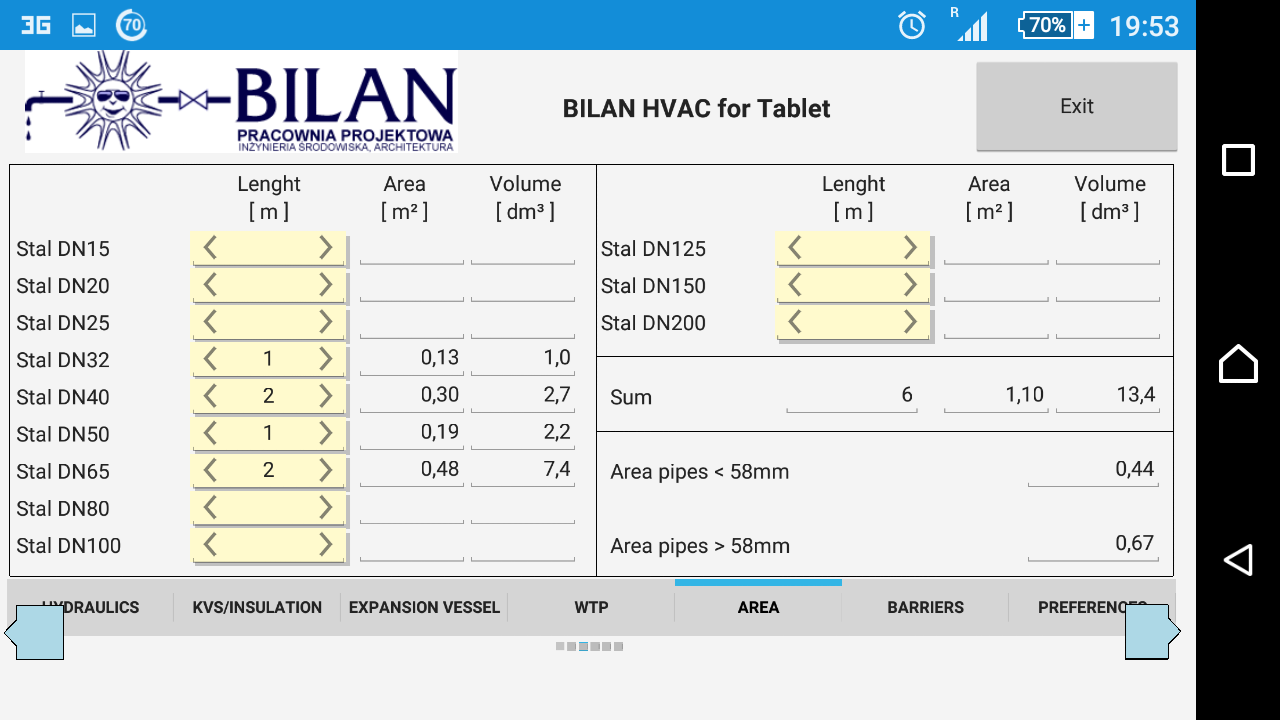

* Calculations surface and pipe capacity - only Standard.
WATER

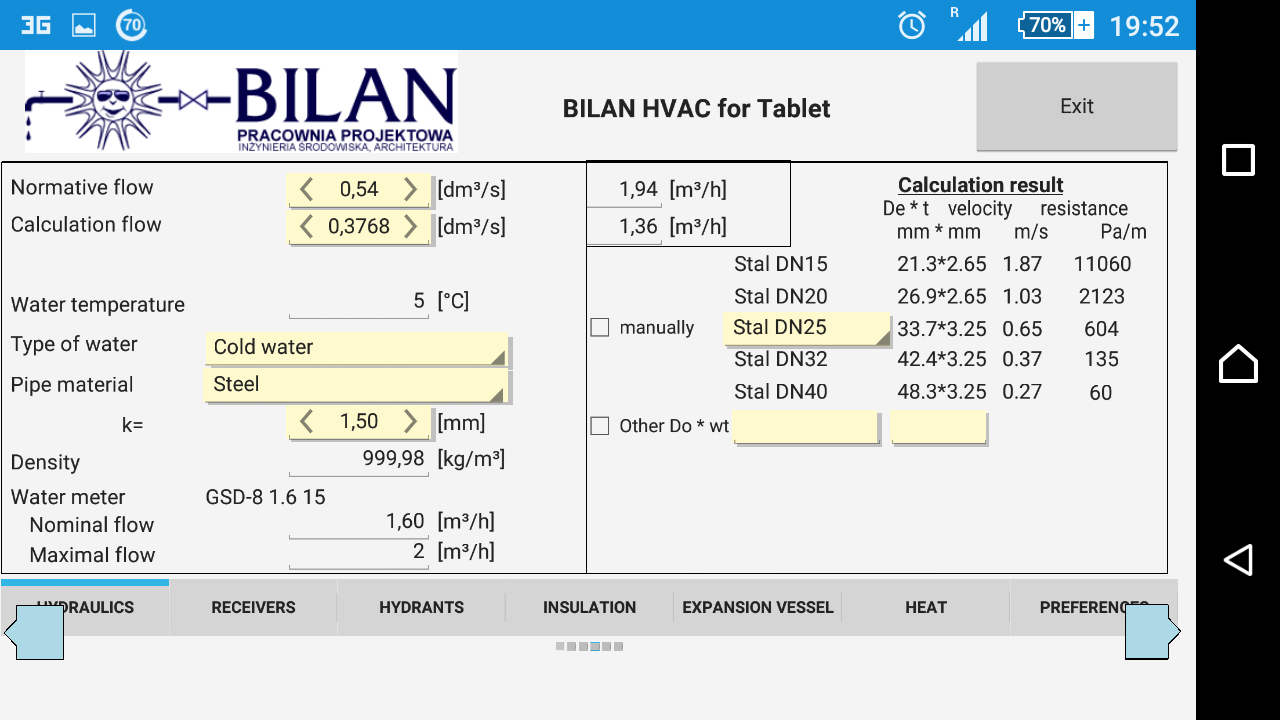

* Hydraulics system.

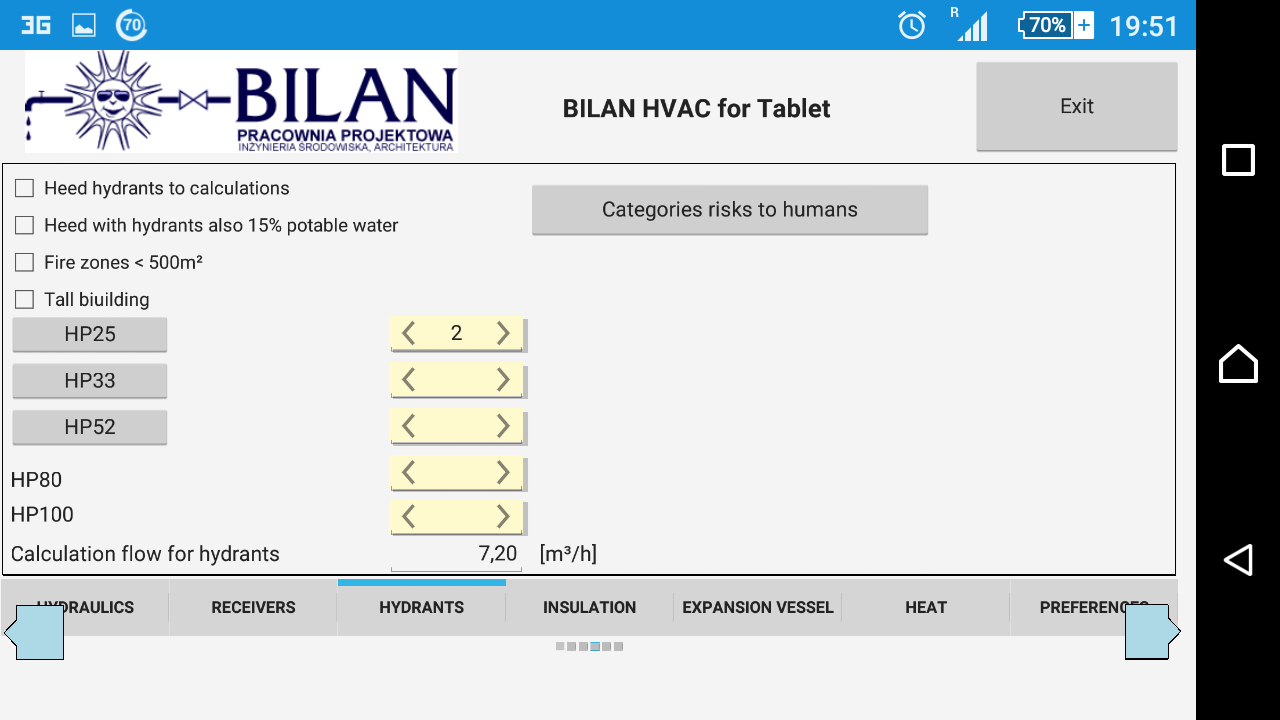

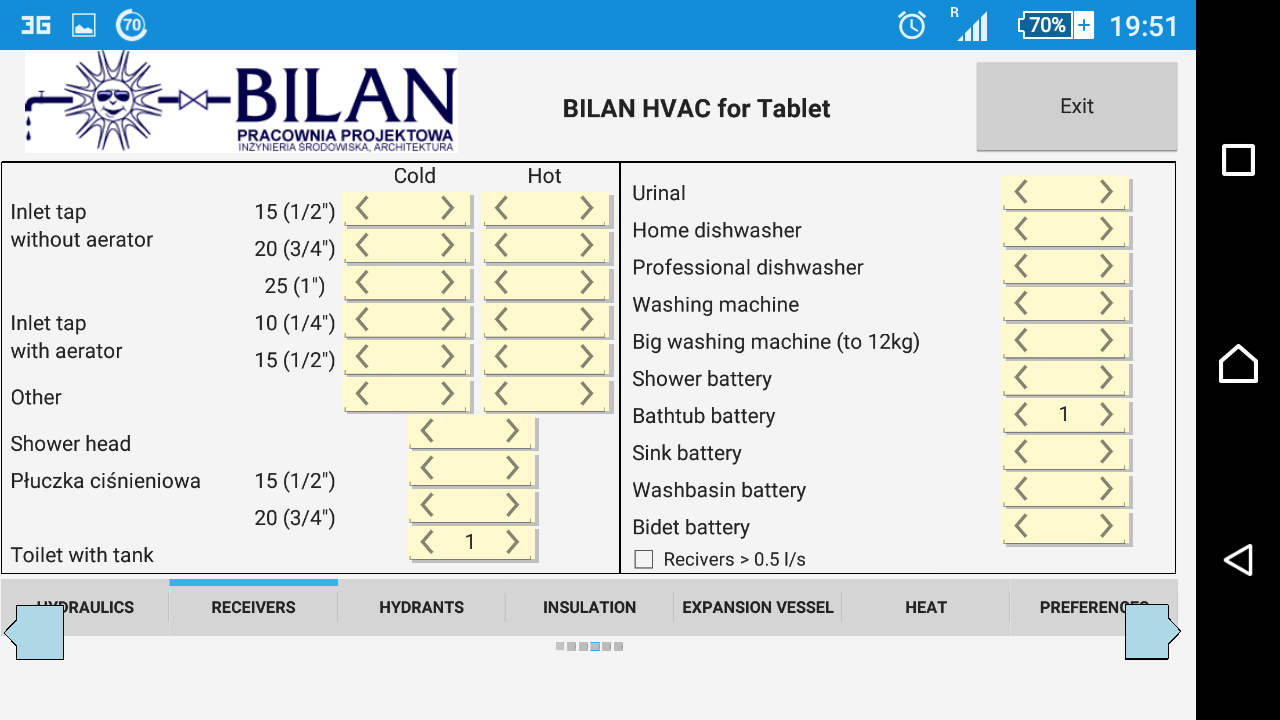

* Devices and fire hydrants.

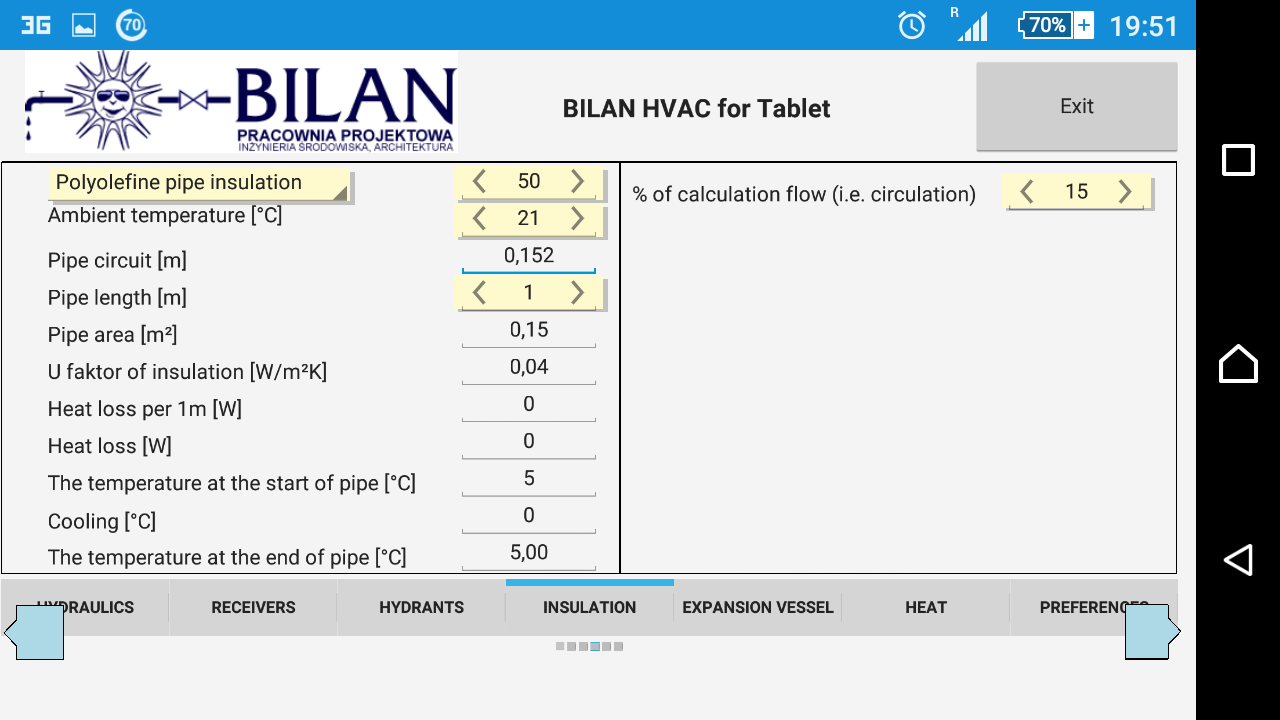

* Pipe insulation - only Standard.

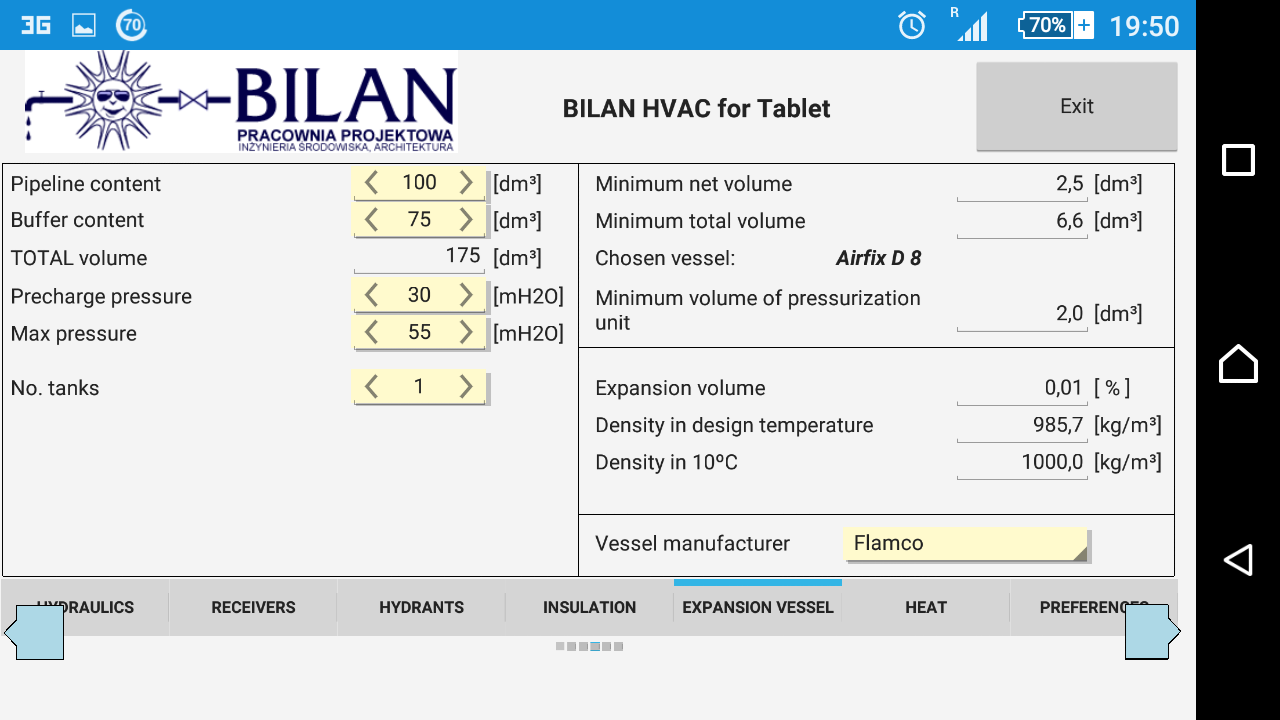

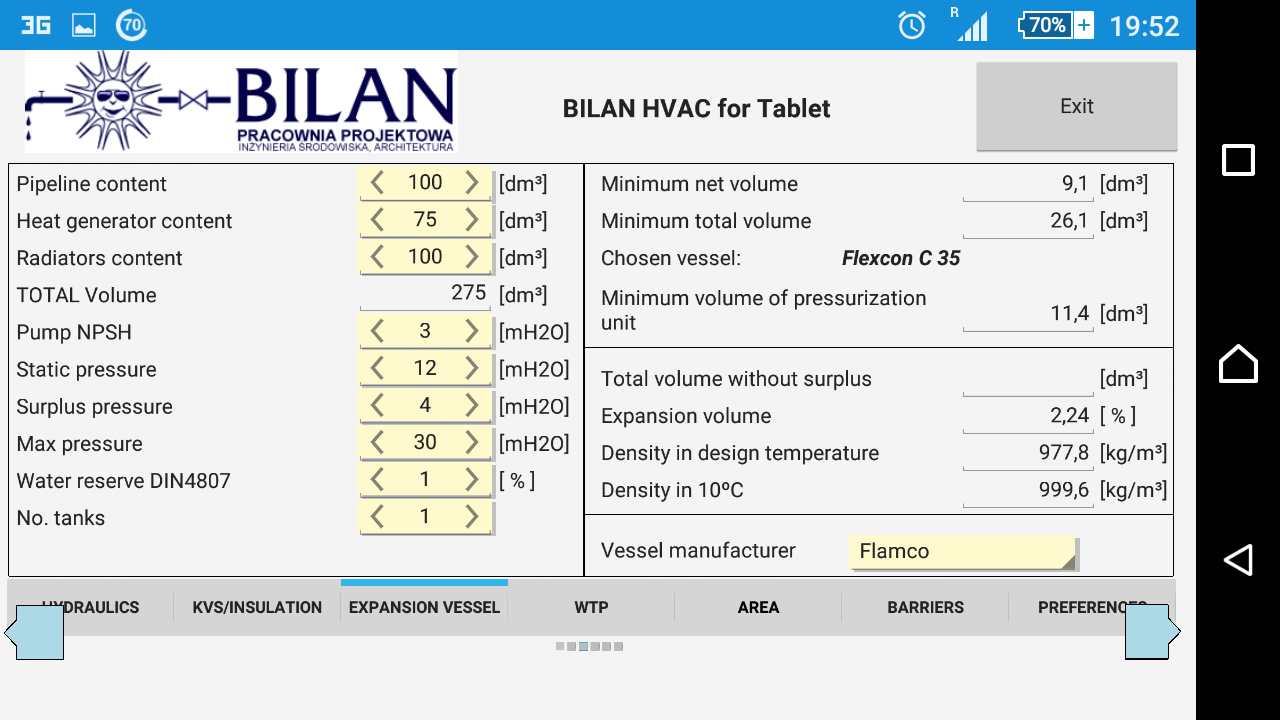

* Expansion vessel.

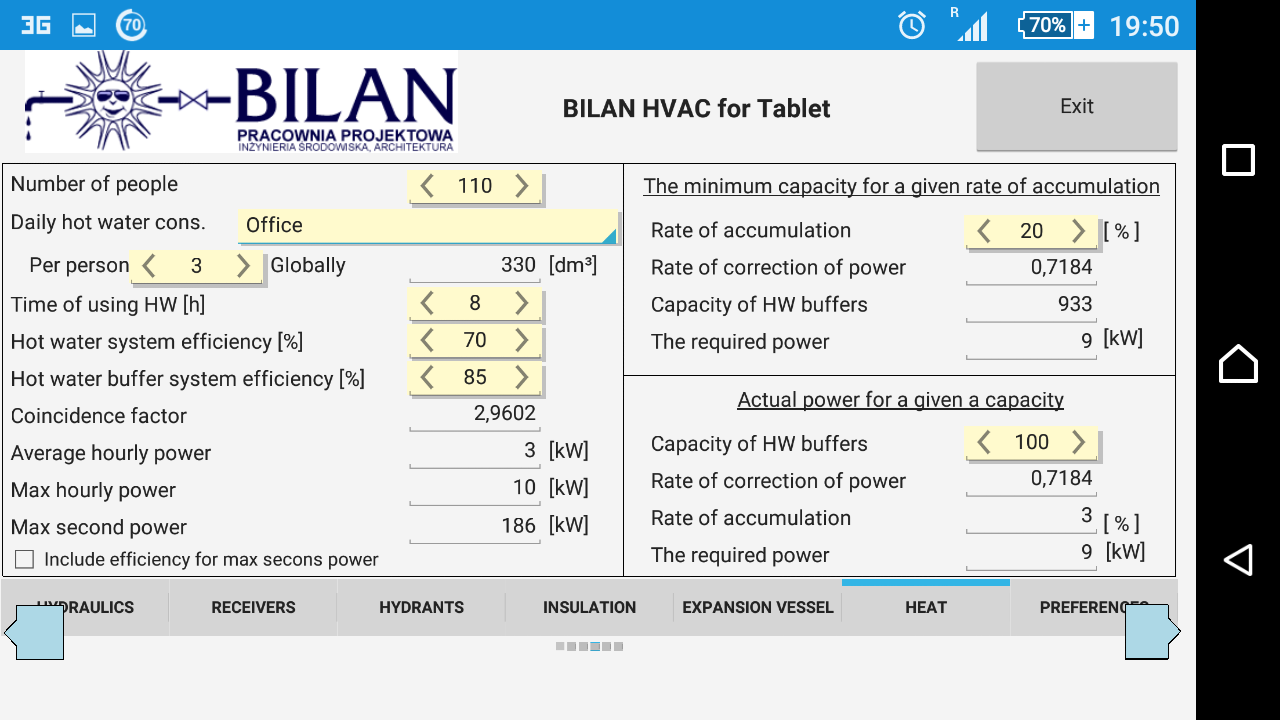

* Calculations hot tap water tank and the heat-up.
Tab CONVERIONS

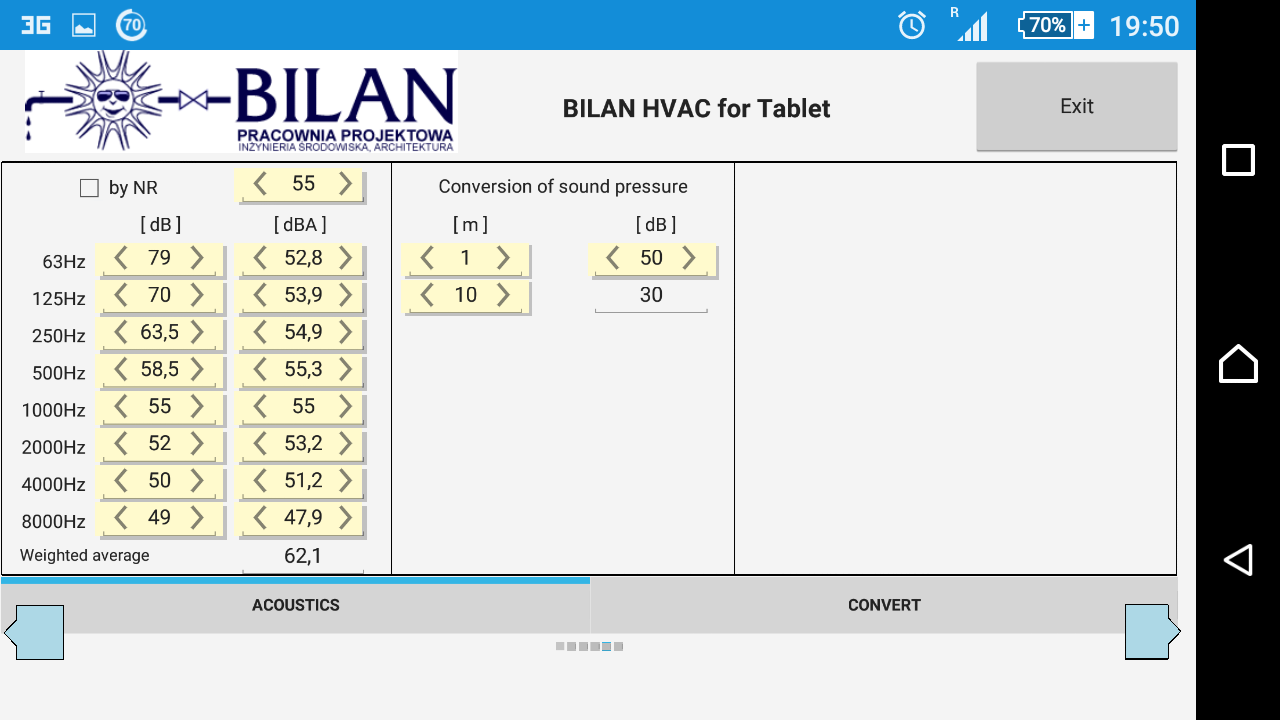

Tab ACOUSTICS - only the PRO
The conversion of acoustic noise dB per dB (A) and NR curves.

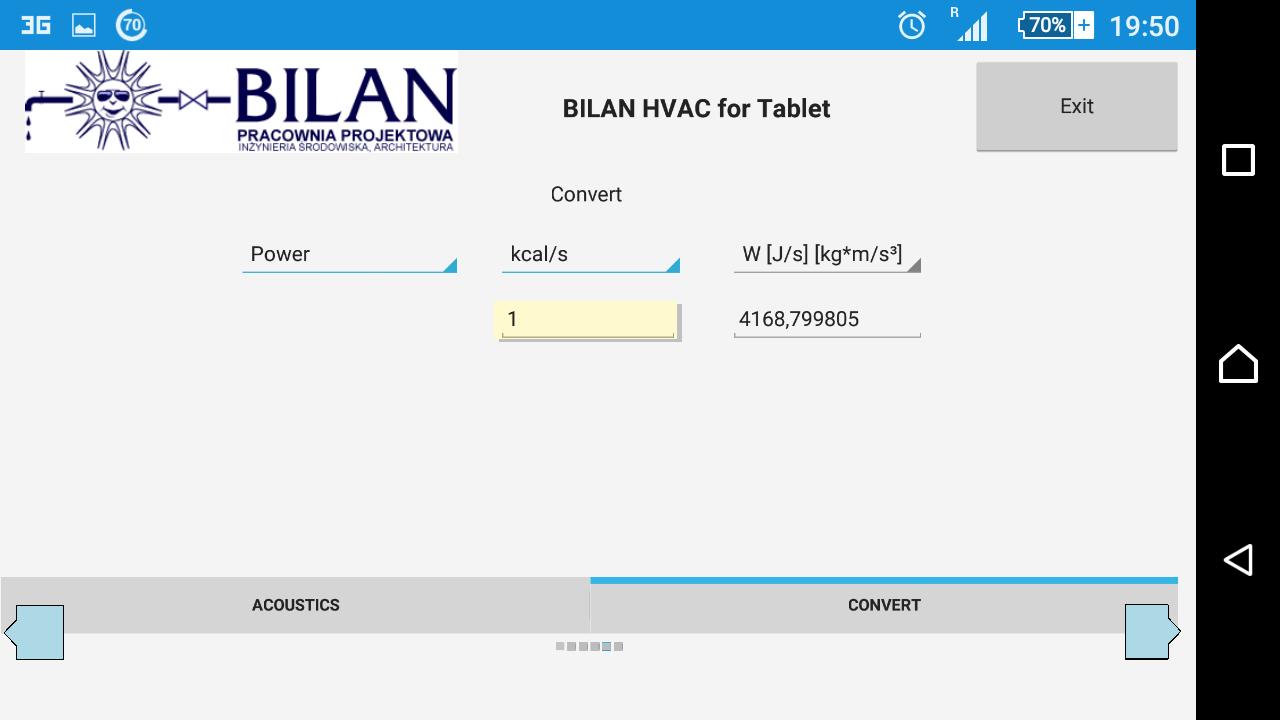

Tab UNITS
Exchange units:
- length,
- mass,
- flow,
- pressure,
- energy.
In SIMPLE - only number "1", with 2 decimal place
In addition, version Standard with respect to Simple is characterized by:
- The possibility to use commercial
- The lack of an Internet connection,
- Remembering user settings
- Automatic change of scale for ANY application after starting,
- The lack of advertising,
VENTILATION
- The choice duct size as not to exceed the speed condition,
- The choice duct size as not to exceed the noise condition,
- Smart tab,
HEATING
- Selecting any of the pipe.
- Pipe material - in addition:
* HDPE SDR 17
* PERT-Alu-PERT
* PEX
* Crimp systems (steel / stainless steel / copper)
* Stainless high
- Change roughness.
- Additional Factors - glycols,
- Calculation of pipe insulation.
CONVERSION
- Translating for any input,
- Conversion of any number to the nearest 6th decimal place.
Version Pro with respect to Standard is characterized by:
VENTILATION
- Transformation IX central.
- Calculation of the duct insulation.
- Calculations and acoustic conversion.
HEATING
- Any agent.
- Any diameter.
- Additional fluids - thermal oils.
